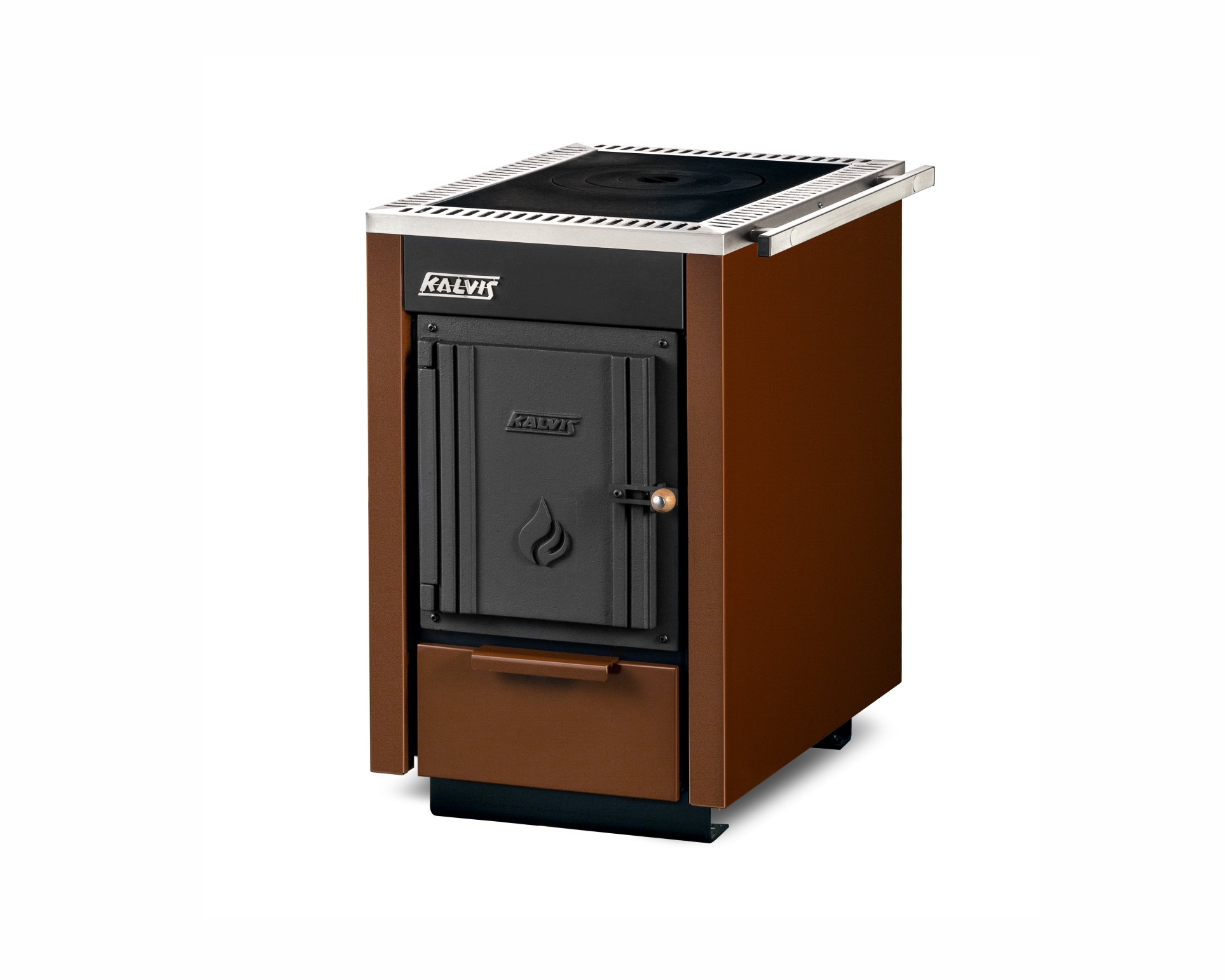

AIR HEATER-COOKER K-KO2

  • Used for heating premises and cooking
  • Compact, easily fits in a small room
  • Wide furnace door
  • Large fuel load (40 dm³)
  • High efficiency (72%)
  • There ir a possibility to connect to the heating wall in case of sufficient chimney draught
  • Armrest could be mounted on both boiler’s sides
  • Outlets to connect air ducts for hot air distribution to other premises
  • Draught damper
  • Housing inner wall steel plate thickness – 6 mm
  • Colours range:



Description

Characteristic

Nominal output, kW

14,5

Heated area, m² *

40…90

Fuel used

wood logs **

Efficiency (firing wood logs), %

71

Fuel loading chamber volume, dm³ (l)

40

Fuel load combustion duration, up to, h.***

5

Logs size, not greater than, cm

40

Water heating chamber volume, l

Flue diameter, mm

Ø130

Minimum chimney draught, Pa

11

Overall dimensions, HxBxL, mm

750x500x770

Mass (brutto), (± 10 %), kg

118



* When thermal resistance ratio of the building is 2,5
** It is not recommended to fire wood with moisture content exceeding 25 %.
   Pieces of waste wood, peat and saw dust briquettes may be used as a substitute fuel.

*** The duration of fuel load burning depend on fuel type, moisture content, outdoor temperature and other factors.



  1. Cast iron plate with rings
  2. Outlets for air ducts fastening of hot air discharge
  3. Flue and draught damper
  4. Fire grates
  5. Ashtray’s drawer
