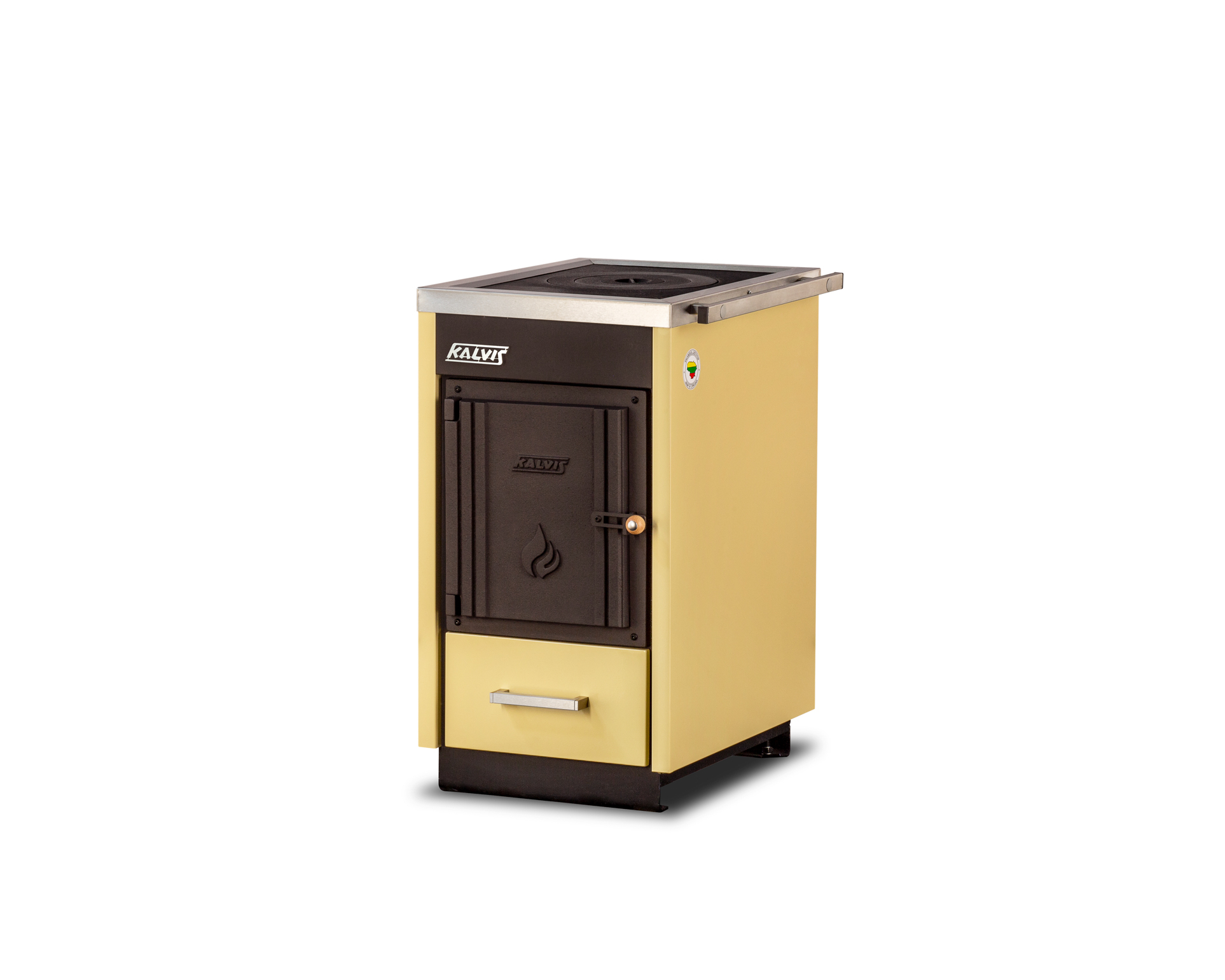

CENTRAL HEATING BOILER – COOKER K-4C

  • Used for heating premises and cooking
  • Compact, easily fits in a small room
  • Wide furnace door
  • Large fuel load (43 dm³)
  • Easy servicing
  • High efficiency (70%)
  • There ir a possibility to connect to the heating wall in case of sufficient chimney draught
  • Armrest cauld be mounted on both boiler’s sides
  • Two hotplates
  • Warranty for boilers frame 4 years
  • Colours range:



Description

Characteristic

Nominal output, kW

10

Heated area (when thermal resistance ratio of the building is 2,5), m²

40…100

Fuel used

wood logs*

Efficiency (firing wood logs), %

70

Combustion chamber volume, dm³ (l)

43

Fuel load combustion duration, up to, h.**

6

Logs size, not greater than, cm

40

Water volume in the boiler, l

33

Flue diameter, mm

Ø130

Minimum chimney draught, Pa

12

Overall dimensions, HxBxL, mm

750x455x920

Mass (brutto), (± 10 %), kg

152



* Coal, pieces of waste wood, peat and saw dust briquettes may be used as a substitute fuel. It is not recommended to fire wood logs with moisture content exceeding 25 %.
** The duration of fuel load burning depend on fuel type, moisture content, outdoor temperature and other factors.



  1. Cast iron plate with rings
  2. Heat exchanger cleaning cover
  3. Flue and draught damper
  4. Heat exchanger partition
  5. Inserted ash cleaning cover
  6. Ashtray’s drawer
  7. Fire grates
  8. Fender

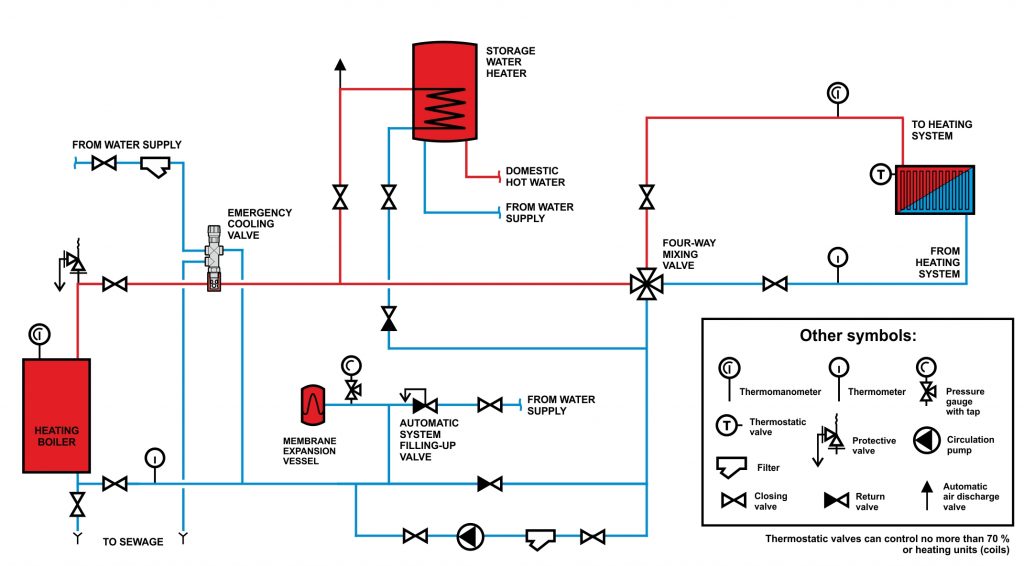

Recommended solid fuel boiler room installation diagram (for closed heating system) with an expansion tank and emergency cooling valve

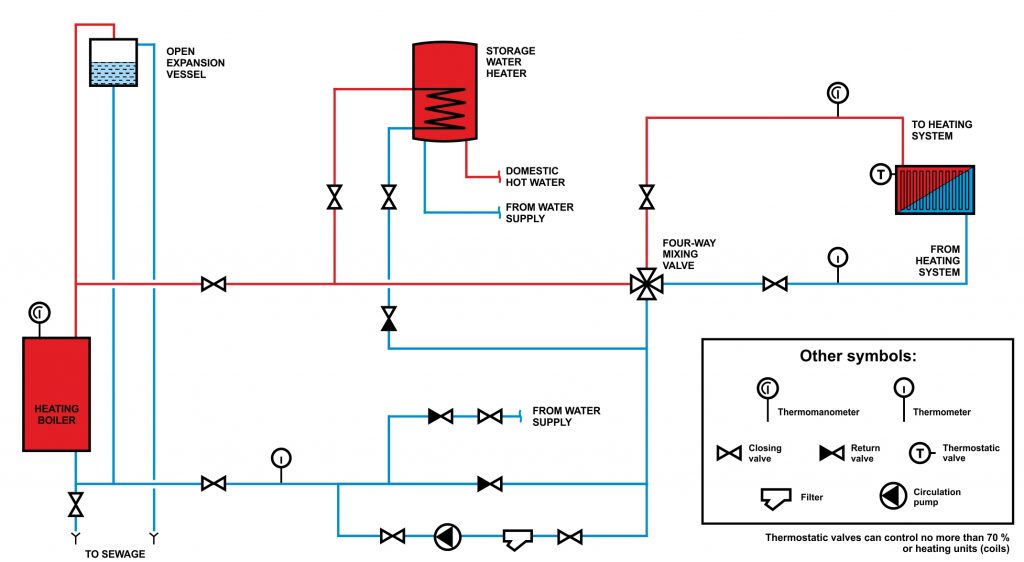

Recommended solid fuel boiler room installation diagram (for opened heating system) with an open expansion tank



* Installation equipment shown on the diagram are not included with the boiler. When utilizing a chosen installation diagram it is necessary to install all of the equipment provided on the diagram.
